FreshMon

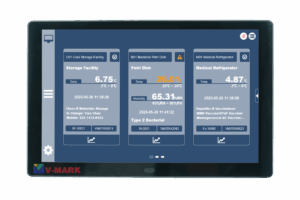

Gateway Display

  • 10.1” screen displays (optional) real-time monitoring
    temperature and alarm information
  • Can be used as handheld terminal
  • Configurable according to different applications
  • Supports Ethernet / Wi-Fi / 4G communication
  • 6-Hour Battery backup
  • Main power monitoring and power outage alarm
  • Voice alarm for abnormal temperature measurement
    & network connection
  • Supports GPS positioning and trajectory tracking during
    transportation
  • NFC one-click configuration and sensor binding
  • Connect Bluetooth printer to print monitoring data
  • Auto save monitoring data for data tracking

Basic Parameters

Communications: •2.4G/Sub1g LoRa proprietary network
•Zigbee
Network Interface: •Dual-band Wi-Fi
•4G full network
•Ethernet
Display •10.1” screen
•1280×800 pixels
•Capacitive touch screen
Working Temperature: •-20℃ ～ +70℃
Battery Voltage & Capacity: •3.7V / 4000mAH
Dimensions: •Gateway with display：25cm x 16cm x 2.2cm / 500g
•Gateway without display：12.5cm x 12.5cm x 3cm /350g
Communication Range: •Outdoor 200 m
•Indoor 100 m
Extensible functions: •NFC tag reading

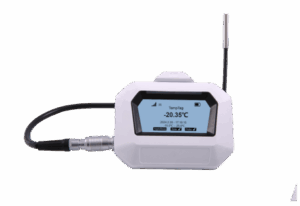

Digital Temp Sensor
with Probe

  • Display: Reflective LCD, real-time display of measurement and alarm information
  • Auto-save during network interruptions. Stores 100,000 pieces of temperature / humidity data
  • Intelligent base supporting seamless device switching
  • Supports drop alarm and disassembly alarm
  • NFC communication interface for binding and reading data
  • Working temperature -40℃~80℃
  • Multi-type probe support:
    • Built-in sensor (-40℃~80℃)
    • Temperature and humidity probe (-40℃~80℃, 0~100%RH)
    • External probe (-40℃~105℃)
    • External wide temperature probe (-200℃~200℃)

Basic Parameters

Communications: 2.4G wireless communication •Outdoor 200 m •Indoor 100 m
Measurement range & Accuracy: Temperature: Option 1: -40℃ ~80℃, ±0.5℃ Option 2: -200℃ ~ +200℃, ±0.5℃
Data reporting interval: 10s ~7200s, able to save 100,000 data records
Battery & capacity: ER14505 / 2500mAH
Waterproof rating: IP67
Battery life: 3 years (Collect and report data every 5 minutes)

Temp/Hum Sensor

  • Display: Reflective LCD, real-time display of measurement and alarm information
  • Auto-save during network interruptions. Stores 100,000 pieces of temperature / humidity data
  • Intelligent base supporting seamless device switching
  • Supports drop alarm and disassembly alarm
  • NFC communication interface for binding and reading data
  • Operating temperature -40℃~80℃
  • Multi-type built-in sensor:
    • Temperature range (-30℃~80℃)
    • Humidity range (0~100%RH)

Basic Parameters

Communications: Sub 1G (bands 410M~434MHz /470~510MHz/868—869MHz/902—928MHz) •Outdoor 1000 m •Indoor 100m
Measurement range & Accuracy: Temperature: -30℃ ~80℃, ±0.5℃ Humidity: 0~100%RH, ±5%RH
Data reporting interval: 10s ~7200s, able to save 100,000 data records
Battery & capacity: ER14505 / 2500mAH
Waterproof rating: IP68
Battery life: 3 years (Collect and report data every 5 minutes)
FreshMon Kit

FreshMon – Grocery Kit

Description:

The Grocery Kit includes one gateway, four temperature sensors (one with an external probe), and two temperature & humidity sensor. It is commonly used in convenience stores, CDC facilities, and community health centers.

  • User Manuals (include Warranty & Maintenance)
    •
1 x Android Gateway with display (VGW12W05-EC25-24G)
  • Android Tablet Industrial Gateway — Includes power supply and mounting bracket
3 x Lora Temp sensor (VTS13W01)
  • Industrial Digital Wireless Temperature Sensor (2.4GHz LoRa)
2 x Lora Temp/RH sensor (VTS13W04)
  • Industrial Digital Wireless Temperature and Humidity Sensor (2.4GHz LoRa)
1 x Lora Temp sensor w/o PRB (VTS13P01)
  • Industrial Digital Wireless Temperature Sensor (2.4GHz LoRa) without probe
1 x TMP117 Probe (VTS01P13)
  • External probe measuring range-55℃~150℃
Buy Now
FreshMon Kit

FreshMon – Restaurant Kit

Description:

The Restaurant Kit includes one gateway, five temperature sensors (one with an external probe of normal range , one with an external probe of high temperature range ), and one temperature & humidity sensors. It is commonly used in restaurants, fresh food markets, and similar environments.

  • User Manuals (include Warranty & Maintenance)
    •
1 x Android Gateway with display (VGW12W05-EC25-24G)
  • Android Tablet Industrial Gateway — Includes power supply and mounting bracket
3 x Lora Temp sensor (VTS13W01)
  • Industrial Digital Wireless Temperature Sensor (2.4GHz LoRa)
1 x Lora Temp/RH sensor (VTS13W04)
  • Industrial Digital Wireless Temperature and Humidity Sensor (2.4GHz LoRa)
2 x  Lora Temp sensor w/o PRB (VTS13P01)
  • Industrial Digital Wireless Temperature Sensor (2.4GHz LoRa) without probe
1 x TMP117 Probe (VTS01P13)
  • External probe measuring range-55℃~150℃
1 x High Temperature PT1000 Probe (VTS01P14)
  • External probe measuring range -50℃ ~ 300℃
Buy Now
