VTS13 Series Temperature and Humidity Sensor

Features

Sub1g LoRa Proprietary network: 433M/470/868/915M wireless network, efficient and power-saving, more suitable for cold chain applications
Low Power Consumption: lithium thionyl chloride battery with 3 years’ service life.
IP68 Rated: Completely sealed waterproof design.
Offline storage: Ability to store up to 100,000 records if network connection fails
Automatic Network detection: When a network connection is restored, the device auto detects and reconnects
Built-in LCD display: Displays real-time Measurement data, Battery status information and network connectivity

Applications:

Refrigerators	Walk-in Freezers
Cold Storage	Walk-in Coolers
Pharmacies	Supermarkets
Warehouses	Laboratories / Medical Institutions
Cold Chain Transportation	Restaurants

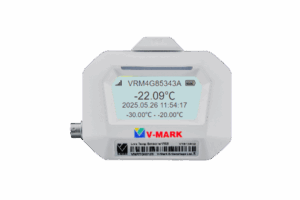

LoRa Temperature Sensor

Basic Parameters

Model	VTS13W01
Operating temperature	-30℃ ~ 70 ℃
Temperature range	-30 ℃ ~ 70℃
Humidity range	/
Resolution	0.01℃
Measurement accuracy	±0.5℃
Network coverage distance	outdoor: 200m indoor: 30m ~ 50m
Way of communication	LoRa(2.4G)
Service life	3 years (5-minute intervals)

LoRa Temperature & Humidity Sensor

Basic Parameters

Model	VTS13W04
Operating temperature	-30℃ ~ 70 ℃
Temperature range	-30 ℃~ 70℃
Humidity range	0 ~ 100%RH
Resolution	0.01℃/0.01%RH
Measurement accuracy	typical ±0.2℃, Max ±1.0℃ typical ±2%RH, Max ±5%RH
Network coverage distance	outdoor: 200m indoor: 30m ~ 50m
Way of communication	LoRa(2.4G)
Service life	3 years (5-minute intervals)

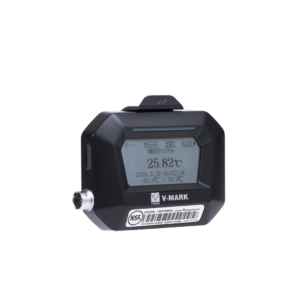

External Probe Temperature Sensor

Compatible with VTS01P12 Wide Range PT1000 Probe
Compatible with VTS01P13 TMP117 Probe
Compatible with High Temperature PT1000 Probe

Learn more on compatible probes

Basic Parameters

MODEL	VTS13P01
OPERATING TEMPERATURE	-30℃ ~ 70 ℃
HUMIDITY RANGE	/
RESOLUTION	0.01℃
NETWORK COVERAGE DISTANCE	Outdoor: 200m Indoor: 30m~50m
WAY OF COMMUNICATION	LoRa (2.4G)
Service Life	3 years (5-minute intervals)
