VTS01 Series Temperature and Humidity Probes

Features

Durable: All probes are exclusively designed for extreme heat or cold environmental measurements
Easy plug n play: Sensors are interchangeable with temperature tags.
IP68 Rated: Completely sealed waterproof design.

Applications:

Refrigerators	Walk-in Freezers
Cold Storage	Walk-in Coolers
Pharmacies	Supermarkets
Warehouses	Laboratories / Medical Institutions
	Restaurants

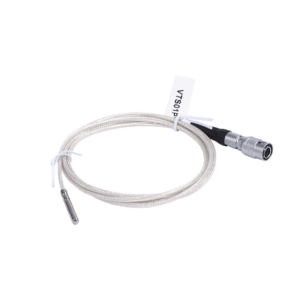

PT1000 Probe Wide Range

Basic Parameters

Model	VTS01P12
Operating temperature	-40℃ ~ 85 ℃
Probe type	PT1000
Range	-200℃ ~ 200℃
Resolution	0.01℃
Measurement accuracy	typical ±0.5℃, max ±1.0℃

TMP117 Probe

Basic Parameters

Model	VTS01P13
Operating temperature	-40℃ ~ 85℃
Probe type	TMP117
Connector	7 pins connector
Resolution	0.01℃
Temperature range	Accuracy
-20 °C to 50 °C	±0.1 °C (maximum)
-40 °C to 70 °C	±0.15 °C (maximum)
-40 °C to 100 °C	±0.2 °C (maximum)
-55 °C to 125 °C	±0.25 °C (maximum)
-55 °C to 150 °C	±0.3 °C (maximum)

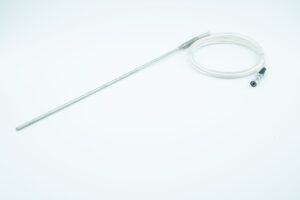

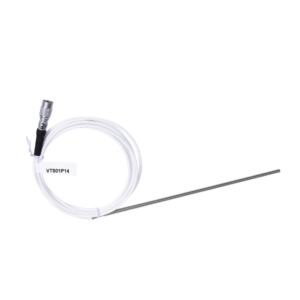

High Temperature PT1000 Probe

Basic Parameters

Model	VTS01P14
Operating temperature	-40℃ ~ 85℃
Probe type	PT1000
Range	-50℃ ~ 300℃
Resolution	0.01℃
Accuracy	Typical ±0.5℃, max ±1.0℃

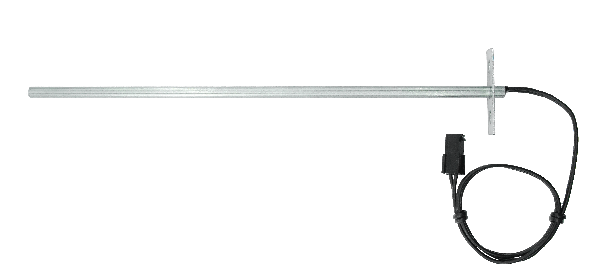

Metal Probe

Basic Parameters

Model	VTS01P02
OPERATING TEMPERATURE	-40℃ ~ 85℃
PROBE TYEP	NTC Probe
RANGE	-40℃ ~ 105℃
RESOLUTION	0.01℃

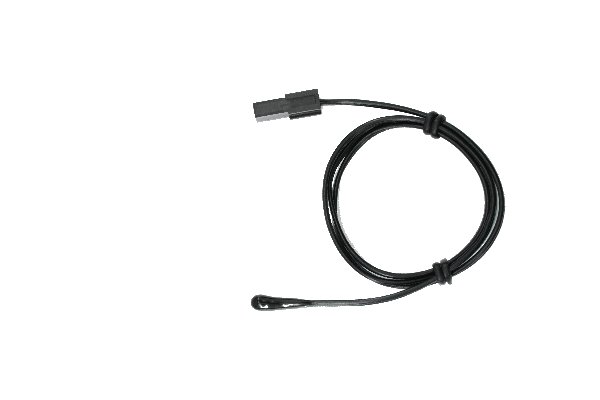

Thin Wire Probe

Basic Parameters

Model	VTS01P03
Operating temperature	-40℃ ~ 105 ℃
Probe type	NTC probe
Range	Measurement accuracy
B25/85= 3950K	R25= 10K ±1%

PT1000 Probe

Basic Parameters

Model	VTS01P05
OPERATING TEMPERATURE	-40℃ ~ 85℃
PROBE TYEP	PT1000
RANGE	-50℃ ~ 200℃
RESOLUTION	0.01℃

PT1000 Probe Wide Range

Basic Parameters

Model	VTS01P06
OPERATING TEMPERATURE	-40℃ ~ 85℃
PROBE TYEP	PT1000
RANGE	-200℃ ~ 200℃
RESOLUTION	0.01℃

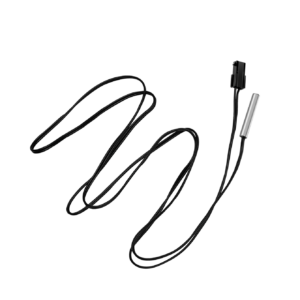

Hot Water Probe

Basic Parameters

Model	VTS01P07
OPERATING TEMPERATURE	-40℃ ~ 85℃
PROBE TYEP	NTC Probe
RANGE	-40℃ ~ 105℃
RESOLUTION	0.01℃
